Installed the receiver/hitch today!
Moderator: BCDelica
-
- Posts: 37
- Joined: Sat Dec 17, 2011 7:07 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica
- Location: Victoria, BC
Installed the receiver/hitch today!

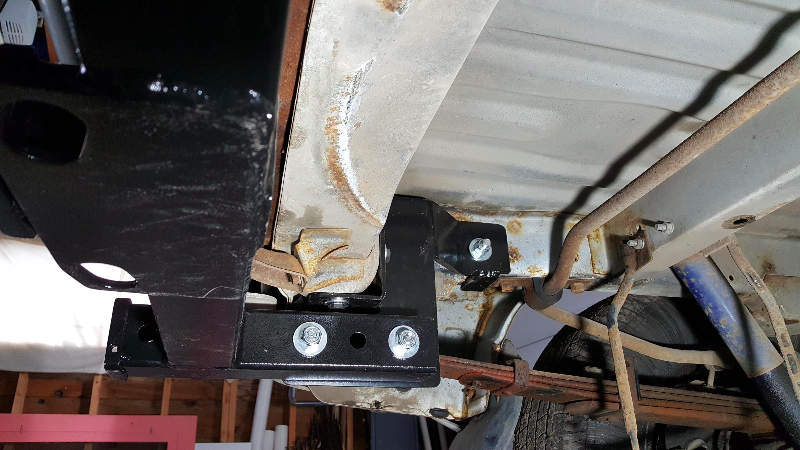

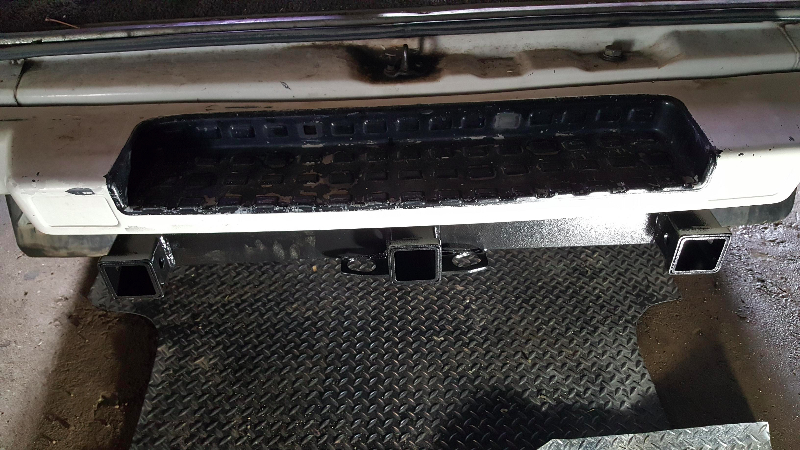

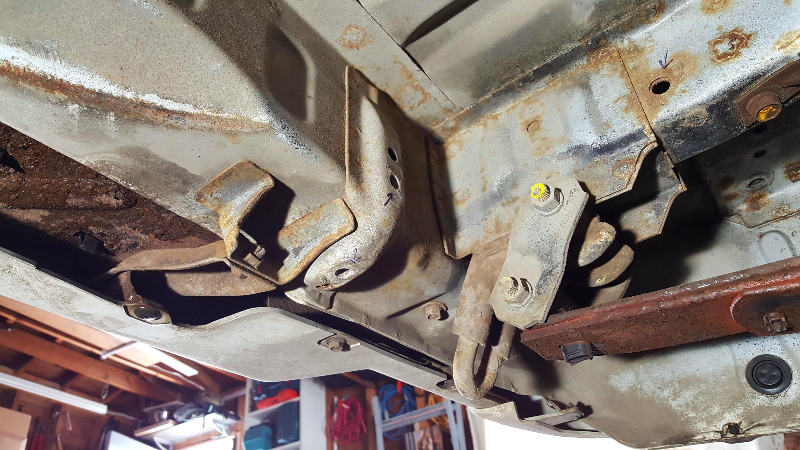

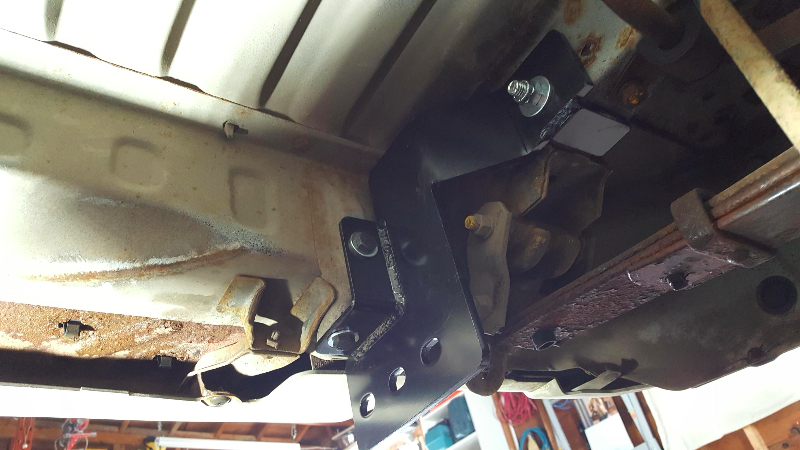

I've wanted to put a receiver on my delica for a while. For towing a trailer or bike racks etc.. Finally got around to ordering a kit from Steven @ Rising Sun Imports, and to be honest, it was one of the easiest installs I've done. I spent hours on the phone here in Edmonton trying to get a shop to weld something up or modify a receiver for the 1992 Delica, but nobody wanted to touch it. Getting the kit from Stephen was super easy, and very happy with the result! Uses 3 existing bolt holes.
NOTE: I actually had to move the bolts to the first 2 settings on the large middle part to make a little more room for when I lifted up the spare tire.... in the pic shown it has the bolts in the 1 and 3 holes..
NOTE: I actually had to move the bolts to the first 2 settings on the large middle part to make a little more room for when I lifted up the spare tire.... in the pic shown it has the bolts in the 1 and 3 holes..
- Lapprentis
- Posts: 357
- Joined: Sat Dec 28, 2013 6:02 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica L300 StarWagon 1990
- Location: Quebec
Installed the receiver/hitch today!
I have the very same one: installation was flawless. It is very well made and strong ! My bike carrier goes there too :)
Lapprentis
Lapprentis
-
- Posts: 8
- Joined: Sun Mar 26, 2017 9:26 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1990 Delica L300
- Location: Lake Tahoe, Nevada
Installed the receiver/hitch today!
Hey definingdigital, thanks for posting about your hitch install...looks awesome. I've been meaning to do the same thing since I bought my Delica 4 months ago, but haven't found the right one yet, and that setup you have looks solid. Aside from mtn bikes, I'm looking to haul a 300 lb (ya know, like 140 kg in more advanced civilizations;) moto on a hitch rack. Any idea what the tongue weight rating is for your hitch receiver? What is the make/model? Cheers for the beta.
- Crankshaft Culture
- Posts: 85
- Joined: Tue Jun 20, 2017 11:07 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1989 Delica
- Location: Portland, OR
- Contact:
Installed the receiver/hitch today!
That looks great, and very stout.
Out of curiosity, does anyone know if the Curt hitches for the Mitsubishi Van that was imported into the U.S. work on a Delica?
http://www.curtmfg.com/part/11611
I know it's a little class 1, but I'm only looking to pull a light trailer.
Out of curiosity, does anyone know if the Curt hitches for the Mitsubishi Van that was imported into the U.S. work on a Delica?
http://www.curtmfg.com/part/11611
I know it's a little class 1, but I'm only looking to pull a light trailer.
-
- Posts: 1
- Joined: Thu Aug 17, 2017 6:01 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 87 L300 4wd 4D56
- Location: Seattle
Installed the receiver/hitch today!
Would you please be willing to post a part or catalog number? I want to order the same for my 87. Thank you!definingdigital wrote:I've wanted to put a receiver on my delica for a while. For towing a trailer or bike racks etc.. Finally got around to ordering a kit from Steven @ Rising Sun Imports, and to be honest, it was one of the easiest installs I've done. I spent hours on the phone here in Edmonton trying to get a shop to weld something up or modify a receiver for the 1992 Delica, but nobody wanted to touch it. Getting the kit from Stephen was super easy, and very happy with the result! Uses 3 existing bolt holes.
NOTE: I actually had to move the bolts to the first 2 settings on the large middle part to make a little more room for when I lifted up the spare tire.... in the pic shown it has the bolts in the 1 and 3 holes..
-
- Posts: 37
- Joined: Sat Dec 17, 2011 7:07 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica
- Location: Victoria, BC
Installed the receiver/hitch today!
Just call stephen @ rising sun imports to order..
http://www.rs-import.ca/infodesk/custom_center.php
http://www.rs-import.ca/infodesk/custom_center.php
- Lapprentis
- Posts: 357
- Joined: Sat Dec 28, 2013 6:02 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica L300 StarWagon 1990
- Location: Quebec
Installed the receiver/hitch today!
It is a Very good quality part, easy to install. The only drawback is that any oversized tire, even with the stock rim/wheel, will make the spare tire holder not to fits perfectly into its original position.
Lapprentis
Lapprentis
-
- Posts: 37
- Joined: Sat Dec 17, 2011 7:07 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica
- Location: Victoria, BC
Installed the receiver/hitch today!
I believe I ran into the same issue. I just had to drill a hole a bit lower for the tire mount, so the tire would fit under. Might need a different fix for a larger tire.Lapprentis wrote:It is a Very good quality part, easy to install. The only drawback is that any oversized tire, even with the stock rim/wheel, will make the spare tire holder not to fits perfectly into its original position.
Lapprentis
- weelsey
- Posts: 73
- Joined: Mon Nov 13, 2017 5:36 pm
- Member's Photo Album: http://www.delica.ca/Photos/profile.php?uid=15295
- Vehicle: '90 2.5l high roof exceed
- Location: Harvey Parish, NB
Installed the receiver/hitch today!
Very nice, and I wish that was on mine!
I realize I don't have a rear sway bar on my delica..
I bet I could fit a 235/75-15 behind that hitch, where as my Reese 37096 multi-fit will not allow it despite all my efforts to force it. But it's robust, and I believe my solution to carry the spare will be to install a moto-hauler I inherited from a motorhome and strap the spare to it as a temporary solution, despite the extra weight. at least the tire is then not on the roof!
I would try to sell you my moto-bar if you were closer, Snomad74!
I realize I don't have a rear sway bar on my delica..
I bet I could fit a 235/75-15 behind that hitch, where as my Reese 37096 multi-fit will not allow it despite all my efforts to force it. But it's robust, and I believe my solution to carry the spare will be to install a moto-hauler I inherited from a motorhome and strap the spare to it as a temporary solution, despite the extra weight. at least the tire is then not on the roof!
The reese is 500lb rated. I took a pic of the spec sticker but it turned out blurry. it's this one: https://www.summitracing.com/int/parts/ ... /overview/Snomad74 wrote:I'm looking to haul a 300 lb moto on a hitch rack
I would try to sell you my moto-bar if you were closer, Snomad74!
-
- Posts: 35
- Joined: Thu Feb 18, 2016 10:52 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L300
- Location: BC
Installed the receiver/hitch today!
Hi Weelsey,
Did I read this correctly? Do you have the Reese 37096 on your Delica? Did you have to customize it to get it to work?
MB
Did I read this correctly? Do you have the Reese 37096 on your Delica? Did you have to customize it to get it to work?
MB
