Bombardier VW ILTIS
so a few asked me to share info about my Iltis so here it is. this is my daily driver.
Ex-Canadian military vehicle made by Bombardier but originally designed and built by VW.
came with a 1.7l gas motor. has 2wd, 4wd, and rear locker in stock form. she runs a 24 volt system with a 100 amp alternator and i have added a battery equalizer for the twin batteries to be able to power up 12 volt accessories.

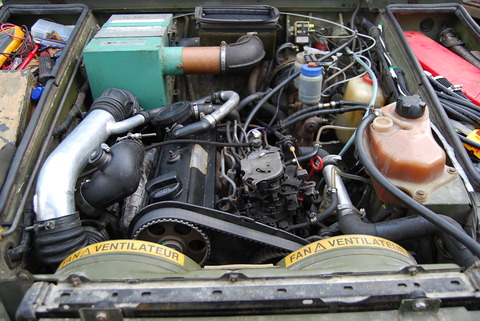

last year i swapped out the motor for a 1.9TD from a diesel Jetta. and have been running it on close to 50% WVO mix since september.
very little mods in the way of using waste oil, i wrapped the injection lines with heated wire and they did great till temps dropped and last week i installed a VW oil filter coolant heat exchanger to the fuel filter. she is getting harder to start in below zero temps so i need to do a bit more mods. but she has no trouble handling 50% WVO once it starts up.
Loud, Cold, windy, but lots of fun to drive. gotta wear a toque when the temps drop.
Ex-Canadian military vehicle made by Bombardier but originally designed and built by VW.
came with a 1.7l gas motor. has 2wd, 4wd, and rear locker in stock form. she runs a 24 volt system with a 100 amp alternator and i have added a battery equalizer for the twin batteries to be able to power up 12 volt accessories.
last year i swapped out the motor for a 1.9TD from a diesel Jetta. and have been running it on close to 50% WVO mix since september.
very little mods in the way of using waste oil, i wrapped the injection lines with heated wire and they did great till temps dropped and last week i installed a VW oil filter coolant heat exchanger to the fuel filter. she is getting harder to start in below zero temps so i need to do a bit more mods. but she has no trouble handling 50% WVO once it starts up.
Loud, Cold, windy, but lots of fun to drive. gotta wear a toque when the temps drop.
- Attachments
-

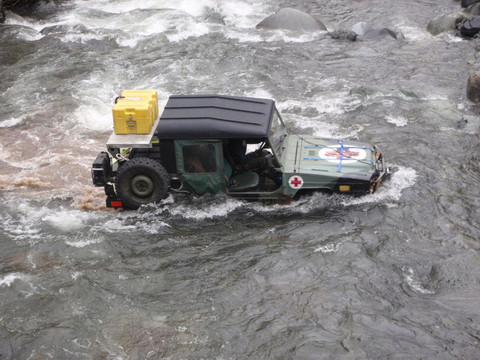

- 030_Island_Rally_June_2010_sized.jpg (81.91 KiB) Viewed 8359 times
-
- 019_Island_Rally_June_2010_sized.jpg (99.95 KiB) Viewed 8359 times
-
- 1c.jpg (67.97 KiB) Viewed 8359 times
-

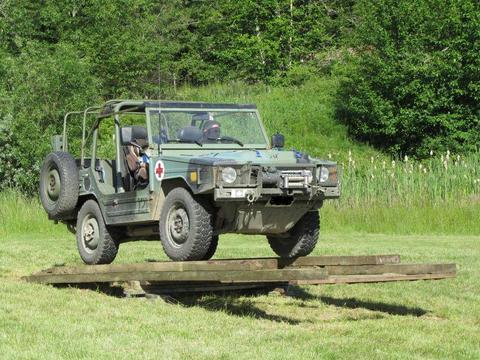

- teeter+totter.jpg (48.29 KiB) Viewed 8359 times
-

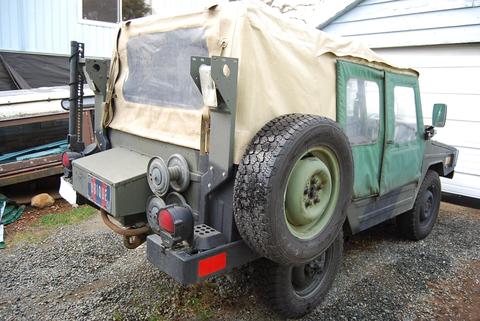

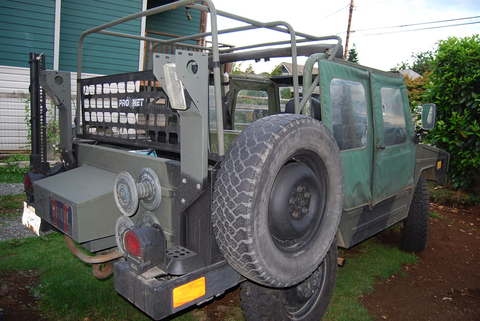

- spare.jpg (73.17 KiB) Viewed 8359 times
-
- jackall.jpg (69.72 KiB) Viewed 8359 times
-
- desel+swap.jpg (130.55 KiB) Viewed 8359 times
Last edited by rezdiver on Tue Dec 13, 2011 8:36 pm, edited 2 times in total.
Cheers,
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
- rezdiver
- Posts: 276
- Joined: Sat Apr 03, 2010 10:10 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1991 L300
- Location: comox valley
Re: Bombardier VW ILTIS
More pics
- Attachments
-

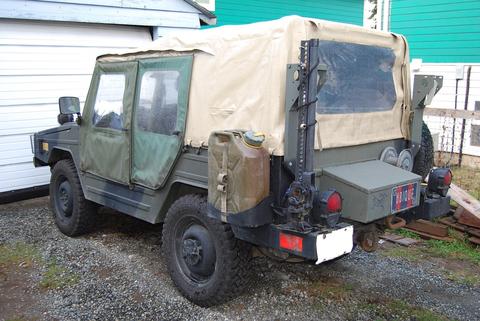

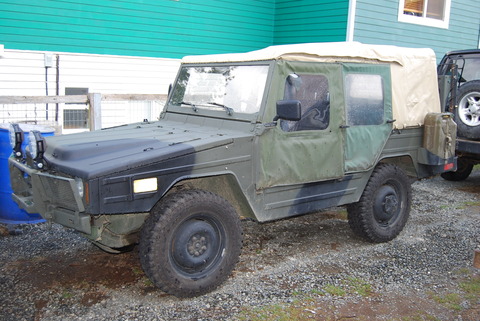

- Iltis+sept+2010.jpg (92.5 KiB) Viewed 8358 times
-
- wind+break.jpg (90.52 KiB) Viewed 8358 times
-
- Diesel.jpg (138.81 KiB) Viewed 8358 times
Cheers,
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
-
- Posts: 60
- Joined: Thu Aug 07, 2008 11:34 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: vixen td
Re: Bombardier VW ILTIS
Great job. On tdiclub.com a number of people have experienced major engine damage with rings sticking running on wvo. Some of the experts on their swear that it will ruin any tdi motor. Just wondered if you have done a search on that site re problems of this sort? Hate to see any problems after all that work.
I have no personal experience myself.
I have no personal experience myself.
- rezdiver
- Posts: 276
- Joined: Sat Apr 03, 2010 10:10 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1991 L300
- Location: comox valley
Re: Bombardier VW ILTIS
this motor is a mechanical injection TD not a TDI. I am sure i am doing plenty of damage running 50% with no mods and cold starts, but i am using this motor as an experiment, the swap didnt take long. used VW diesel cars are pretty easy and cheap to come by so if it breaks then i can fix it or replace it for pretty cheap. i figure saving 50% fuel over a year will buy me a couple of used motors.
because of my low gearing my RPM on the highway is near 3800 constant or a bit more, this should clean up the crap out of the cylinders. i put on close to 100km per day.
max speed before engine swap 130km/hr on gas motor.
diesel motor with taller tires, max 100km/hr.
I am going to add a methanol/water injection when i gather all the parts. this is supposed to help clean up the chamber quite a bit so we can add that to the next part of the experiment.
because of my low gearing my RPM on the highway is near 3800 constant or a bit more, this should clean up the crap out of the cylinders. i put on close to 100km per day.
max speed before engine swap 130km/hr on gas motor.
diesel motor with taller tires, max 100km/hr.
I am going to add a methanol/water injection when i gather all the parts. this is supposed to help clean up the chamber quite a bit so we can add that to the next part of the experiment.
Cheers,
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
- claude
- Posts: 189
- Joined: Tue Aug 02, 2011 9:09 pm
- Member's Photo Album: http://www.delica.ca/Photos/claude
- Vehicle: Delica Exceed jasper
- Location: Gold bridge BC
- Location: Gold Bridge, BC Canada
- Contact:
Re: Bombardier VW ILTIS
Nice rig. Would be perfect to discover new trails in the South Chilcotinrezdiver wrote:More pics
"Happiness does not depend on outward things, but on the way we see them"
Leo Tolstoy
Leo Tolstoy
Re: Bombardier VW ILTIS
Love the tool boxes in the engine compartment. Must be handy.
-
- Posts: 1045
- Joined: Mon Mar 05, 2007 4:31 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L400
- Location: BC
Re: Bombardier VW ILTIS
Nice rig! Thanks for posting the pics. Haven't seen many of those around the last few years, used to see quite a few around Vernon, BC a number of years back I guess when they were in military service.
- Tojo
- Posts: 185
- Joined: Mon Oct 31, 2011 4:17 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica L400 Super Exceed LWB
- Location: West Kootenays, BC
Re: Bombardier VW ILTIS
Very cool. Great picture of the child sitting in the front seat. I like to do that with my little ones too!
1993 Delica L300, SWB, LSD, Super Exceed with Crystal-Lite, mostly stock but it's got a digital EGT!!!
1995 Delica L400, LWB, Super Exceed with Crystal-lite, Airlift airbags, SS intercooler pipes, soon to be WVO
1997 Isuzu ELF 2.0Ton Crane truck, 4300cc diesel, NKR66E
1995 Delica L400, LWB, Super Exceed with Crystal-lite, Airlift airbags, SS intercooler pipes, soon to be WVO
1997 Isuzu ELF 2.0Ton Crane truck, 4300cc diesel, NKR66E
-
- Posts: 431
- Joined: Fri Sep 18, 2009 9:08 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 94 l300, 94 l400 lwb, 97 l400 S II
- Location: Manitoba
Re: Bombardier VW ILTIS
Is there a gasoline fired heater in the box on the back of your Iltis? A friend of mine has a similar one (ambulance model) that has an extending soft top to accommodate a stretcher, and a gasoline fired heater in the box hanging off the rear. It works well to keep it toasty warm even in Manitoba winters, but sure knocks the heck outta the fuel mileage. Where did you get the hard top? That look like a more economical solution for a Manitoba winter. (although this winter has been crazy warm so far) Anyways, nice ride. I would love one of those myself.
Jason
Jason
- after oil
- Posts: 1436
- Joined: Mon Feb 11, 2008 7:01 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 92 cham-reimo poptop L300. 78MB240D
- Location: on the road
- Location: occupied coast salish territory aka powell river
-
- Posts: 83
- Joined: Fri Jun 18, 2010 12:11 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 03 Tiburon, 04 PT Cruiser
- Location: Edmonton, AB
Re: Bombardier VW ILTIS
after oil wrote:
- rezdiver
- Posts: 276
- Joined: Sat Apr 03, 2010 10:10 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1991 L300
- Location: comox valley
Re: Bombardier VW ILTIS
the storage boxes are great. tons of room in them.
this was an ex-ambulance model, i have all the racks stored in the garage, not needed and altogether probably 400 pounds of extra weight.
the box in the back is a gas fired heater, does not use too much fuel, i believe this model was 15000btu. it stopped working last year and i have not had time to take it apart. it can run on gas or diesel. it did put out a lot of heat when it was working.
I had custom built that hardtop a while back. worked great. I used a roof from a Series Landrover and modified it to fit. its gone now, sold it and put the softtop back on, its nice to be able to take the top off whenever you want. it is nicer to have the hardtop in the winter as it can be insulated easier but kind of pointless with the wind blowing in through the doors.
this was an ex-ambulance model, i have all the racks stored in the garage, not needed and altogether probably 400 pounds of extra weight.
the box in the back is a gas fired heater, does not use too much fuel, i believe this model was 15000btu. it stopped working last year and i have not had time to take it apart. it can run on gas or diesel. it did put out a lot of heat when it was working.
I had custom built that hardtop a while back. worked great. I used a roof from a Series Landrover and modified it to fit. its gone now, sold it and put the softtop back on, its nice to be able to take the top off whenever you want. it is nicer to have the hardtop in the winter as it can be insulated easier but kind of pointless with the wind blowing in through the doors.
Cheers,
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
- rezdiver
- Posts: 276
- Joined: Sat Apr 03, 2010 10:10 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1991 L300
- Location: comox valley
Re: Bombardier VW ILTIS
just installed a new raycor 5/8 diameter 500watt heated fuel line last night. hoping it will help with the WVO mix this winter. put a picture up in the WVO section of the forum.
Cheers,
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
Reza
1991 Delica L300
Bombardier/VW Iltis + 1/4t trailer
http://www.iltisforum.com/
http://rezdiver.usedcourtenaycomox.com/
- jwfchase
- Posts: 508
- Joined: Mon Dec 03, 2007 10:36 pm
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: '92 Super Exceed
- Location: Kamloops, BC
Re: Bombardier VW ILTIS
Pretty capable little trucks! Thanks for the posts.
- rezdiver
- Posts: 276
- Joined: Sat Apr 03, 2010 10:10 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: 1991 L300
- Location: comox valley
Re: Bombardier VW ILTIS
new additions:

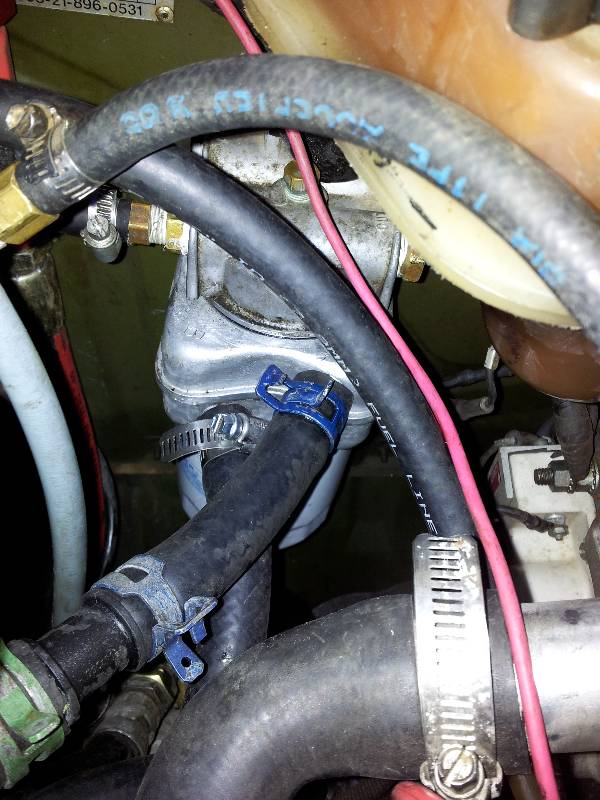

-fuel filter coolant heater
-racor fuel line
also added an outboard manual fuel primer bulb between the fuel filter and injection pump.
-fuel filter coolant heater
-racor fuel line
also added an outboard manual fuel primer bulb between the fuel filter and injection pump.
- Attachments
-

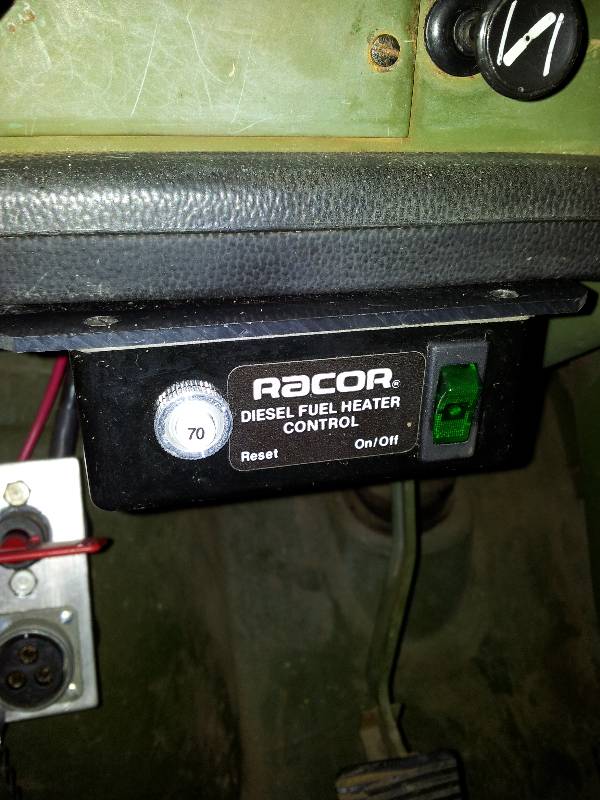

- Optimized-Racor Heated Fuel Line Controller mounted.jpg (69.05 KiB) Viewed 8082 times
-

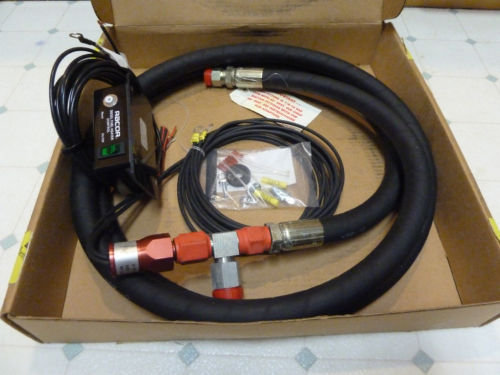

- Racor Heated Fuel Line.jpg (37.13 KiB) Viewed 8082 times
-
- Optimized-Fuel Filter Coolant Heater and new larger heated fuel line.jpg (66.32 KiB) Viewed 8082 times
-

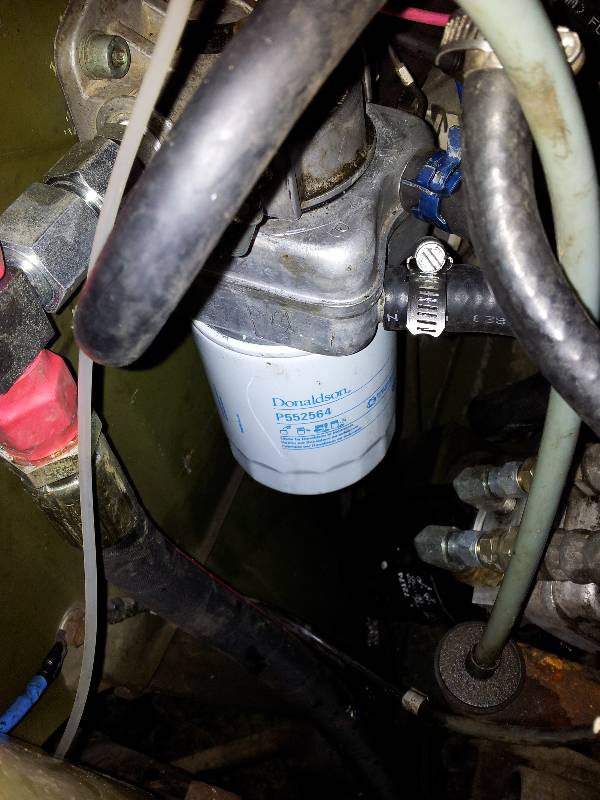

- Optimized-Fuel Filter Coolant Heater.jpg (76.59 KiB) Viewed 8082 times
