Dash, fog & tail lights issue

[ateam]

Hi again,

Sadly our previous issue (http://www.delica.ca/forum/viewtopic.ph ... am#p128294) has morphed into another issue...well we assume they are related. Our headlights have been working since our last fix of the combo switch but we have somehow killed our fog lights, dash lights and tail lights. We switched out the third fuse for a new one and the tail lights worked for 10 minutes before dying again (fuse not blown).

We've had a little look around but as we explained before, we are not electrically-gifted and are pretty stumped as to what we are looking at. There is two wires coming from under the steering column that used to be attached to the steering column cover (and are no longer attached - please see photo) - we thought these might be a ground ?! Can't seem to get them reconnected to test our theory though...damn those teeny tiny little holes in the plastic connector.

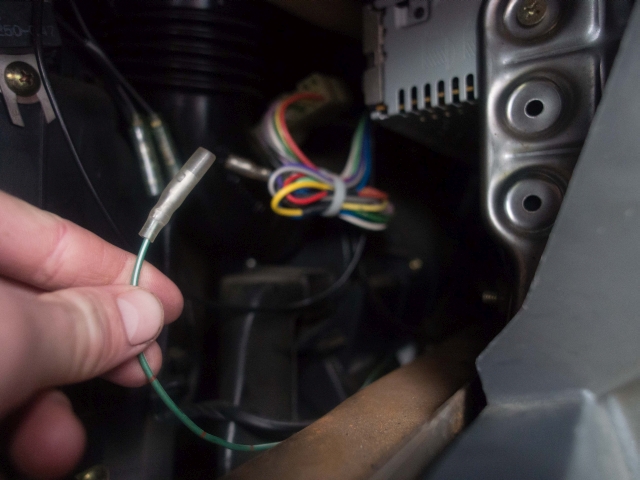

There is also a loose green wire with white stripe behind the glove box...can't seem to see where the connector would plug into / have no idea if this could be related to our problems....we read a post a while ago about a green wire which was the power source for the dash, tail and stereo....not sure if this is the same wire...refer photos.

Our aftermarket PIAA fog lights aren't working either....and the switch doesn't even have power.

Any help/direction very much appreciated.

Cheers,
Anna and Andrew
