I was up in Clearwater BC a couple of weekends ago, which is half way between Vancouver and Edmonton. On Sunday morning, I filled up with diesel before getting on the highway to drive home to Vancouver, and another patron flagged me down as I was pulling away from the pump: "Hey, you've got a Massive Oil Leak there, better stop and check that out!" Thanks...
Well, it was 8am, and already 24 degrees. The first thing I did was drive around behind the station and park it in the shade. I had a hunch this is one of those situations where, if I start overheating and make one poor choice, I'm not sleeping in my bed tonight.
Crawled under the Deli, and sure enough, the oil is coming from what I later learned is called the Vacuum Oil Hose. I had noticed a minute amount of oil in this vicinity, and couldn't figure out where it was coming from. In my service records, I observed it as much as four years ago! When changing my oil and filter, I had seen that hose touching the engine block, and thought, "That isn't right; that hose should be clear of the engine block." It occurred to me that if I had gently bent that hose away from the engine block, I wouldn't be in this moment. In a small town, on a Sunday morning, when everything is closed.
I moved the hose slightly, and the oil stopped dripping out of it. Hm, okay, I just have to stop it from leaking out under pressure. I have an idea...
I walked back inside the gas station, and told the attendant I'd like to buy a hose clamp. "A what?" he said. "Oh we don't have any." What kind of gas station doesn't have hose clamps? A small town gas station, that's what kind.
Don't get me wrong, I really like Clearwater. It seems to have one of everything. It's kind of just sufficient, as human settlements go. Trouble is, my Vacuum Oil Hose let loose on the side of town at The Gas Station Which Does Not Have Hose Clamps.
Now whenever I'm in a small town store, I make a habit of noticing what they've got. You never know when it will come in handy. "Ooh, ambrosia apples. Ooh, hose clamps. Ooh, Preparation H..."
Now it happens that on the other side of town, near Birch Island, there is a corner store that I noticed has a remarkable selection of hose clamps. I remember one year ago, perusing the aisles of said corner store, and thinking, "A hose clamp is a handy thing. I should buy one and toss it in the glove box." It was almost a premonition. But I had only enough coinage for either a hose clamp or a snack. And being hungry at the time, I chose the snack.
But I knew that a buddy of mine, at that moment, would be near that corner store in Birch Island. So I phoned him. And he picked up...
"Hey Doug, is that corner store open?"
"The sign says it opens in ten minutes."
"I've had a Massive Oil Leak. Would you bring me a hose clamp?"
"Okay. Call me back in 15 minutes."
Long and short of it, we determined the correct size (for a small town corner store, Birch Island has an impressive array of hose clamps) and Doug brought me a hose clamp.
So there I was with my disabled Delica, parked in the shade beside The Gas Station Which Does Not Have Hose Clamps, with a hose clamp in my hot little hands. And oh yes, it was hot. I was planning to take one more swim in the lake and hit the road. Instead I've got to patch a Vacuum Oil Hose with a hose clamp in such a way that it will get me back to Vancouver. Or I don't sleep in my bed tonight.
Assuming a success, I walked back into The Gas Station Which Does Not Have Hose Clamps and bought a 4L jug 5W40 oil. I borrowed a pair of scissors from the attendant and cut a small strip off a cotton rag to wrap around the hose clamp, so it would be pressed into the hole in the hose. Then I dumped out the meagre selection of tools from the pouch that hides in the D pillar hatch, selected the crummy flat-blade screwdriver with the rounded tip, crawled under the Deli, and got to work.
I should mention at this point a few things in my favour: 1) I am familiar with this region of the Delica, from doing my own oil and filter changes, 2) I have a head lamp, and 3) I parked it in the shade, so this is not some unbearable road-side repair. On the flip side, I wish I'd had the good sense to put on my black T-shirt, instead of ruining my custom-screen-printed white t-shirt, with oil stains. Yes, it was bound to get messy.

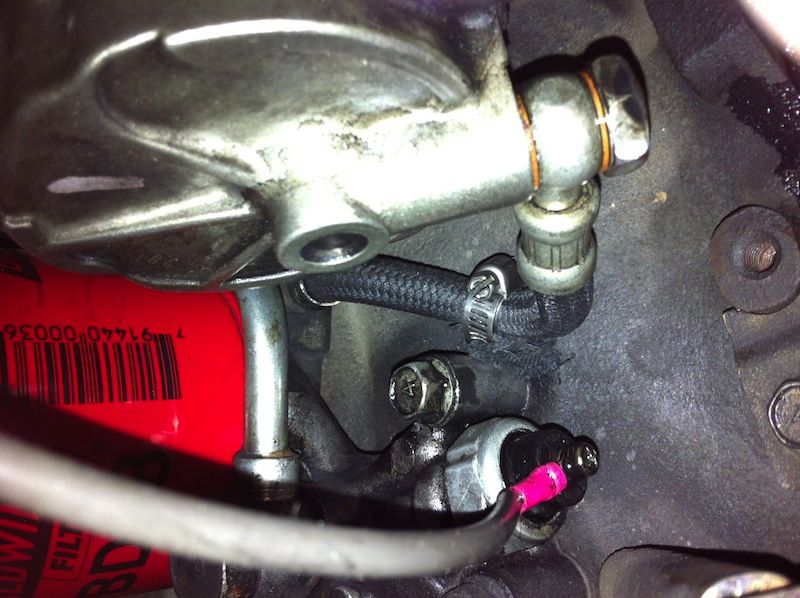

So here's a photo of the makeshift repair with the hose clamp:
- IMG_8781.jpg (438.5 KiB) Viewed 7410 times
I topped up the oil, and it had lost 3 litres! It's a wonder the oil light didn't come on, and the temperature didn't rise. Or maybe it did, and I didn't notice. There was a dribble on the highway all through town! I bought a couple more litres of 5W40, just in case.
Anyway, I went for one last swim in the lake, and hit the road. Now if I had known it would work so well, I'd have taken the Coquihalla! 420km without losing a drop. I guess I got that hose clamp in the right spot.
Now what you're probably here for is the actual replacement of the Vacuum Oil Hose. Ahem. Well, it's basically an oil change with a hose change in the middle of it. I drained the oil, and removed the filter, because it's a very confined space in there. It's the kind of thing where there's room for the bolt but not the tool to turn the bolt; or room enough for the tool, but not for your hand on the tool. Getting the tool, and a hand, and some light, and a sightline on the top banjo bolt was no mean feat.
I started with the Bottom Banjo Bolt so I would know what I'm up against. It came out easily enough, with a 17mm wrench. The same wrench would not work on the Top Banjo Bolt. There is a bump on the engine block, just above the banjo bolt, that makes it impossible to get a socket or even a box wrench on it. Are cars easier to work on now that they're designed with CAD? But this 4D56, made in 1994, does not have such luxuries. The bump gets in the way.
I could get the open end of the 17mm on the bolt, but the handle was too long, and bumped into the body, so I couldn't turn it. I had corresponded with Javabob, and he said he did it with a ratcheting stubby wrench (and a kitchen gadget called a garrote). So I was just about to give up and go to the store, when I remembered that there was a 17mm in the Flare Nut Wrench Set I just bought to replace the brake hoses, and it's slightly shorter than the 17mm wrench.
The flare nut wrench was the ticket. With 6-points, I had to fiddle to find a way it would fit and turn, but the gap in the box wrench cleared the bump, and I was able to turn the banjo bolt.
- IMG_8843.jpg (480.93 KiB) Viewed 7410 times

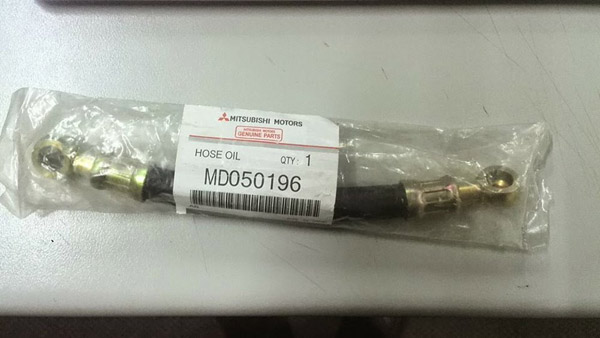

I replaced the vacuum oil hose, and reused the copper crush washers, since this hose from Coombs didn't come with new washers. (theres a debate online that says new washers are crap, better to reuse the old ones, if they're in good condition. I have it on good authority that a place called Green Line in Vancouver can make you this hose to length. But I didn't know that, and since the Deli had turned itself into a 4000LB paperweight, I was anxious to get hold of one pronto. It arrived from Coombs Country Auto in an impressive 2 days.
So there's the new hose:
- IMG_8835.jpg (399.77 KiB) Viewed 7410 times

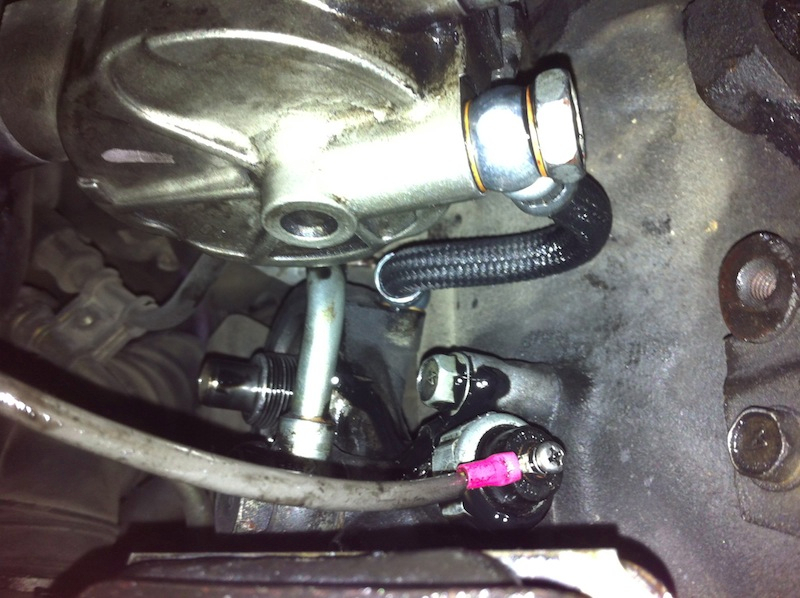

You can actually see in this photo, the smooth spot where the hose rubbed against the engine block. Look just to the right of the bolt with a '4' on the head. How long does it take for a rubber hoseto abrade a metal engine block? At least four years, apparently. I kinda forgive the guy who installed it touching, because the banjo fittings really get dragged around when you tighten them. Important that they end up oriented so the hose isn't touching the engine, in any case.
I put the drain plug back. I put the filter back. And yes, I put the oil back. I know, you're saying No No No, Never Never Never, best thing you can do for your engine, Blah Blah Blah… But hey: I changed the oil and filter a month ago, and 3L is fresh 420km ago. If ever there was a time it's okay to reuse the oil, this is it. You only live once, or so they say.
I started it up, test drove it, and checked for leeks. There were none; darn, another trip to the grocery store. No leaks either, so I declared it fixed.

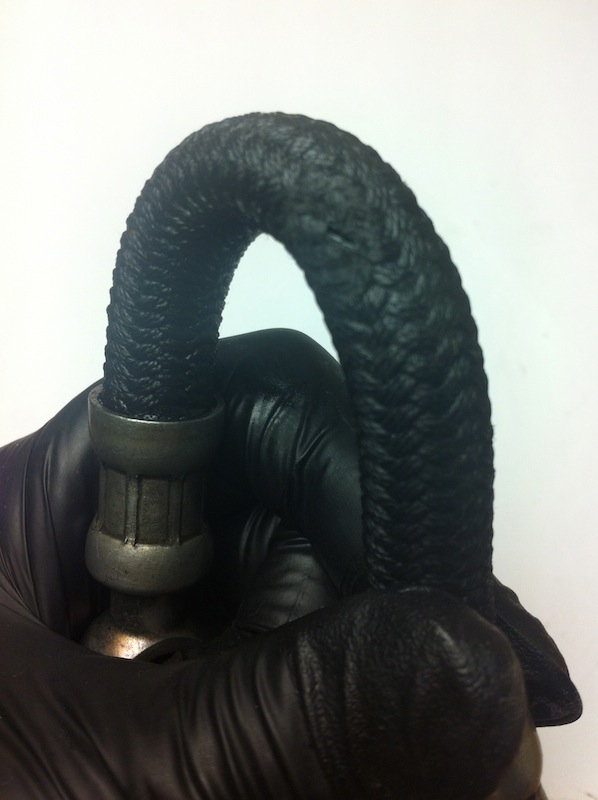

And here's the rupture that started it all:
- IMG_8859.jpg (77.85 KiB) Viewed 7410 times
Well, that about takes the cake for The Longest Forum Post Ever. Hope you found it entertaining, if not informative. A long post about a short hose that caused a massive oil leak.
