Kind of hard to get a good shot of this but here we go.

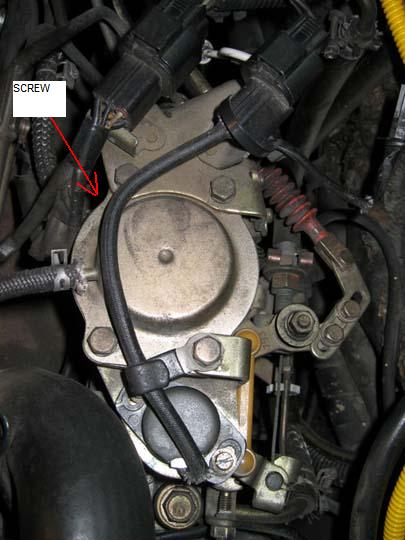

Here is the injector pump. The screw is on the back left when looking from the front. It is about 2-3" down from the top of the pump. Look for the brass coloured protective cap...see next picture.

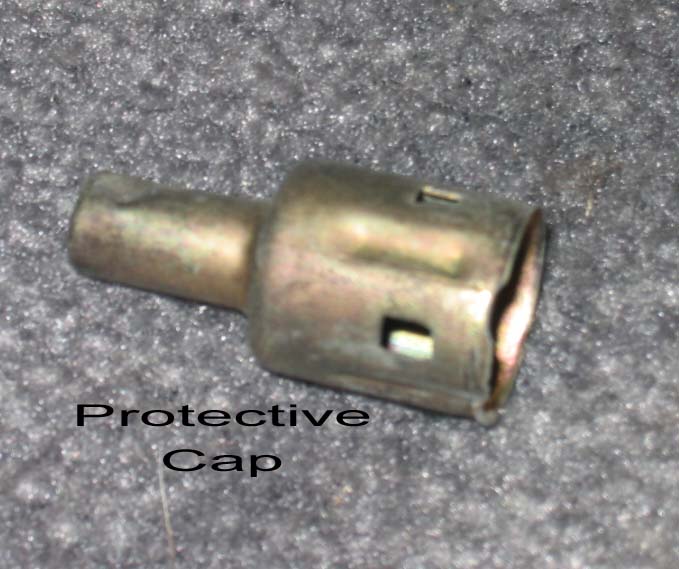

Protective cap...that I didn't bother putting back on. It comes off quite easily. I think I used a very small flat head screw driver and tapped the end with another screw driver. I really just tapped it and it started to move.

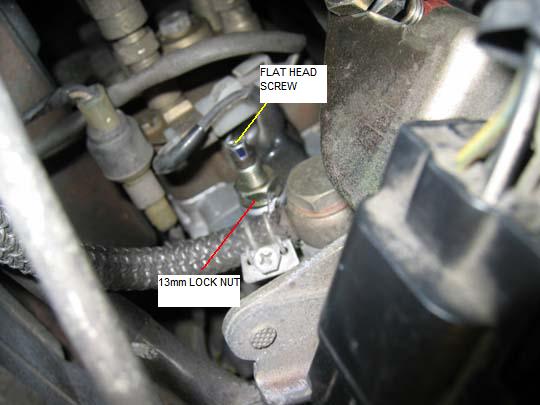

Here is a shot of the lock nut and screw without the cap on of course.
I used a deep 13mm socket to loosen the lock nut and then a stubby quickpic to adjust the screw. You can see the blue felt that I marked the screw with so I could put it back if required.
I also found it easier to work back there if I removed the two connectors going to the pump and moved the automatic transmission kick down cable out of the way.
Hope this helps.
-Mark
Fuel Adjustment Screw
- DelicaMark
- Posts: 330
- Joined: Mon Aug 20, 2007 9:37 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L400
- Location: Duncan, BC
- CVI
- Posts: 175
- Joined: Mon Dec 03, 2007 12:01 pm
- Member's Photo Album: http://cviauto.com
- Vehicle: 1994 Delica Space Gear Royal Exceed
- Location: Richmond, BC
- Contact:
Re: Fuel Adjustment Screw
Hi! just a word of caution on that screw. That's the full load adjustment and is factory preset to deliver the right amount of fuel at certain load conditions. The reason it's sealed with the cap is ....well ...they don't want us to touch it. There are a lot of shims inside the pump that eventually wears out thru time, fuel quality and kms run. When these shims wear, then another part called the plunger and barrel starts to deliver more fuel than necessary. These can be preset only with a calibration machine. So be careful, you can adjust it turning clockwise for more fuel and anticlock for less but only in very small increments. Good luck.
Re: Fuel Adjustment Screw
Hey Mark
I assume you have adjusted this (mixture) screw. Any result yet? What was the mileage on your Delica? Did you suspect a problem before you adjusted this screw?
Thanks
Wayne
I assume you have adjusted this (mixture) screw. Any result yet? What was the mileage on your Delica? Did you suspect a problem before you adjusted this screw?
Thanks
Wayne
- PolyTek
- Posts: 103
- Joined: Fri Sep 28, 2007 1:18 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica P35W Exceed 5MT
- Location: Lower Mainland, BC
- Location: Port Coquitlam, B.C., Canada
- Contact:
Re: Fuel Adjustment Screw
This thread begs the question, at what point should we consider replacing (or servicing) the injector pump so that it continues to operate to spec?
The world is my oyster; tasty, yet often full of sand.
- DelicaMark
- Posts: 330
- Joined: Mon Aug 20, 2007 9:37 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L400
- Location: Duncan, BC
Re: Fuel Adjustment Screw
I was trying to reduce the amount of smoke that the van was producing. I would say that adjusting the screw did not do much for reducing the smoke. If anything it was an incremental improvement for smoke reducton along with the EGR valve being disabled. I was going off some of the UK posts about if you blank the EGR valve then you should turn down the fuel by adjusting this screw. I getting the injection pump timing checked out this week and hopefully that will shed some light onto things.thelazybrownfox wrote:I assume you have adjusted this (mixture) screw. Any result yet? What was the mileage on your Delica? Did you suspect a problem before you adjusted this screw?
-Mark
- DelicaMark
- Posts: 330
- Joined: Mon Aug 20, 2007 9:37 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L400
- Location: Duncan, BC
Re: Fuel Adjustment Screw - Follow Up
A follow up to this post that is required and for that matter a lot of other posts on this and other Delica sites.
I adjusted this full load screw thinking that it was going to help reduce the amount of black smoke that my van was outputting. I did this based on piecing together a few posts from the UK site. The posts totally made sense to me and that is why I decided to monkey around with the adjustment screw.
Now that I have actually had my van's injection system properly tuned by a Mitsu mechanic I realize that this is not a good thing to have done and that it is totally NOT REQUIRED if your van is properly tuned.
I have put the adjustment screw back to the factory setting and would highly recommend not messing around with it because it really didn't solve any problems that I was having and likely will not solve any problems that anyone else is having.
I hope that you all would agree that it is the responsiblity of the users of this site to make sure that our posts are as complete as possible so we don't end up misleading any of our fellow Delica owners. I realize that it will not be possible to always have a resolution but it would be a good best practice for the person that starts a post to try and close up the post.
Sorry for yet another wordy post but I thought it was important to say.
-Mark
I adjusted this full load screw thinking that it was going to help reduce the amount of black smoke that my van was outputting. I did this based on piecing together a few posts from the UK site. The posts totally made sense to me and that is why I decided to monkey around with the adjustment screw.
Now that I have actually had my van's injection system properly tuned by a Mitsu mechanic I realize that this is not a good thing to have done and that it is totally NOT REQUIRED if your van is properly tuned.
I have put the adjustment screw back to the factory setting and would highly recommend not messing around with it because it really didn't solve any problems that I was having and likely will not solve any problems that anyone else is having.
I hope that you all would agree that it is the responsiblity of the users of this site to make sure that our posts are as complete as possible so we don't end up misleading any of our fellow Delica owners. I realize that it will not be possible to always have a resolution but it would be a good best practice for the person that starts a post to try and close up the post.
Sorry for yet another wordy post but I thought it was important to say.
-Mark
Re: Fuel Adjustment Screw
Hey Mark
You are spot on. Thanks for keeping your post updated.
Has you fuel mileage increased since the tune? I'll be curious to hear your oppinion of the cost of the tune compared to the black smoke (decrease) and fuel mileage increase. Ant idea what was actually adjusted?
Thanks
Wayne
You are spot on. Thanks for keeping your post updated.
Has you fuel mileage increased since the tune? I'll be curious to hear your oppinion of the cost of the tune compared to the black smoke (decrease) and fuel mileage increase. Ant idea what was actually adjusted?
Thanks
Wayne
- DelicaMark
- Posts: 330
- Joined: Mon Aug 20, 2007 9:37 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: L400
- Location: Duncan, BC
Re: Fuel Adjustment Screw
Hey Wayne check out this post http://www.delica.ca/forum/hard-startin ... -1850.html for the results of the tune.
I haven't had a full tank of fuel through since the tune so I am not sure on the fuel economy yet. I think it should get better but who knows.
I haven't had a full tank of fuel through since the tune so I am not sure on the fuel economy yet. I think it should get better but who knows.
Re: Fuel Adjustment Screw
Thanks again Mark
I read that post not 30 sec ago. Great news eh. I'll keep that timing in mind as I go further in my t belt change.
Wayne
I read that post not 30 sec ago. Great news eh. I'll keep that timing in mind as I go further in my t belt change.
Wayne
