2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Sun Mar 21, 2010 10:26 am

Locally made in Canada suspension lift kits for the L300 Delica and L400 Spacegear models.

Lift kits are available between 1 and 2" inches in height.

This lift will provide a firmer and more stable ride on your Delica.

** Recommended wider rims with larger tires :

- Wheel/Rim size : 15x7 or 15x8 with 3.75 to 4 " backspacing
- Maximum Tire size : 31x10.5x15

** Not included with lift kit.

Shipping options :

- local pickup $0
- Greyhound depot service across Canada $25-85
- Overseas $ please contact for quote


I will update this thread regarding quantity available.

My contact information if you have any questions and please PM or email me with questions/comments. I am asking to keep posts/discussion in this thread to a minimum.

jfarsang @ gmail.com

*INSTALLATION and lift kits are available at CVI Automotive. They have extensive experience with suspension install/modifications and are the shop of choice for a one-stop install and wheel alignment.

CVI Automotive
cviauto.com
420 Shell Rd #105, Richmond, BC
Phone: 604.247.0500


Lift Kit #1 - $480

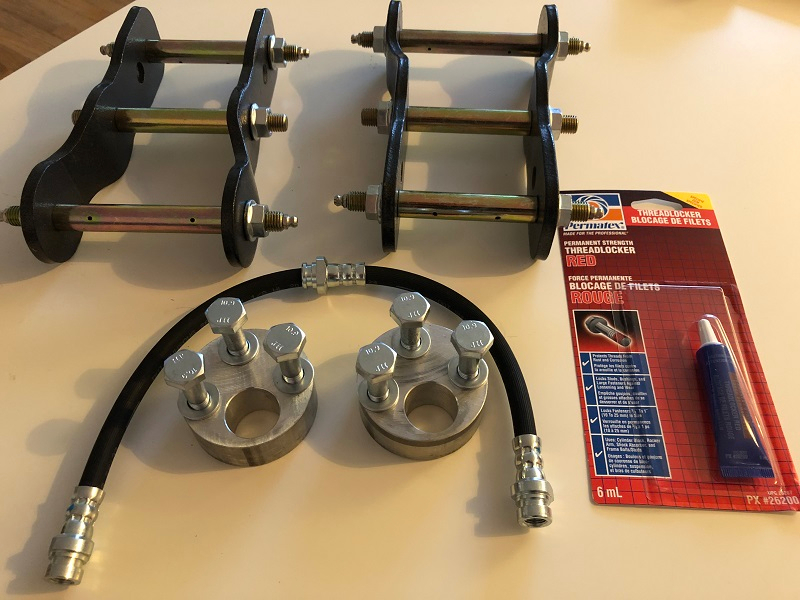

Version 2.0 - L300 2" partial lift kit contents -

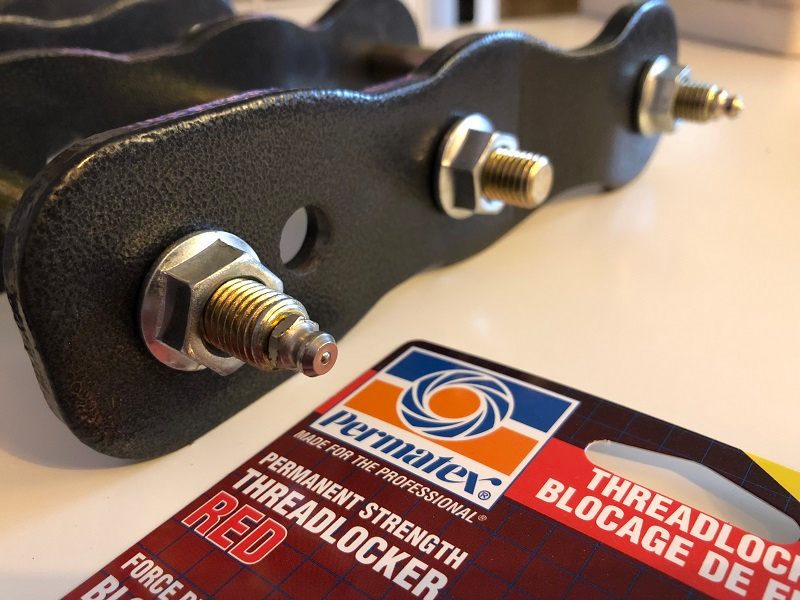

Pair of shackles that now have greaseable pins and two height settings 1.5" and 2"
Pair of front upper balljoint tapered spacers
Extended rear brake hose
Loctite Red thread locker

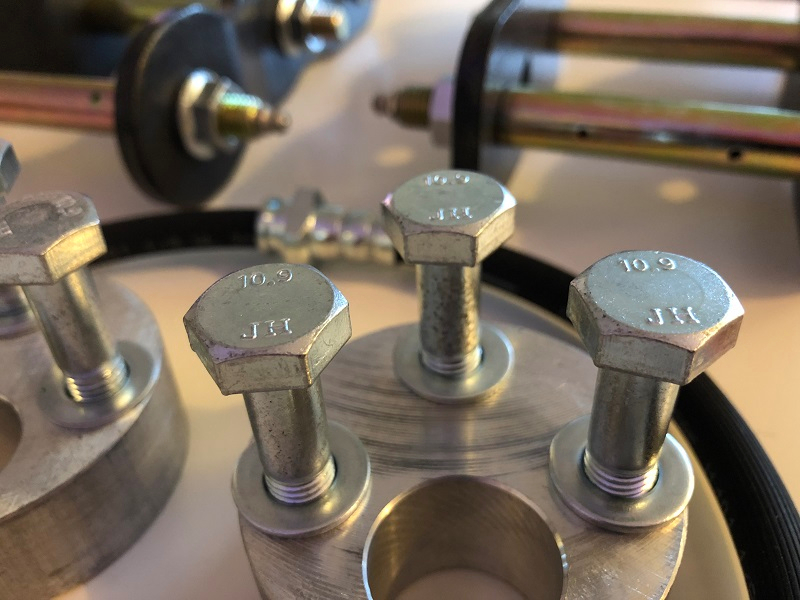

Metric Grade 10.9 bolt pins/nuts for shackles and bolts/washers for balljoint spacers

*Not included in kits but recommended are Procomp front 915510 and rear 921520 2" longer than stock extended shocks. I can get these if one would like, however they are available from NSOR, Lordco and online parts stores.

Lift Kit #2 - $810

Version 2.0 - L300 2" full lift kit contents -

Pair of shackles that now have greaseable pins and two height settings 1.5" and 2"
Pair of front upper balljoint tapered spacers
Extended rear brake hose
Loctite Red thread locker
Metric Grade 10.9 bolt pins/nuts for shackles and bolts/washers for balljoint spacers
Procomp 9000 series shocks (4) front & rear including hardware
Poly bushings to replace Procomp stock rubber bushings
Last edited by jessef on Wed May 02, 2018 9:14 pm, edited 15 times in total.

User avatar
mararmeisto
Posts: 3275
Joined: Wed Sep 19, 2007 10:00 am
Vehicle: 2013 Toyota Tacoma
Location: Dartmouth, NS

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by mararmeisto » Sun Mar 21, 2010 11:35 am

Not much of a Pajero market, eh?
JPL
I still miss my '94 Pajero!

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by jessef » Sun Mar 21, 2010 12:03 pm

LWB rear coils and tbar adjustment will net you 2" lift on your shorty.

User avatar
mararmeisto
Posts: 3275
Joined: Wed Sep 19, 2007 10:00 am
Vehicle: 2013 Toyota Tacoma
Location: Dartmouth, NS

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by mararmeisto » Sun Mar 21, 2010 12:13 pm

jfarsang wrote:LWB rear coils and tbar adjustment will net you 2" lift on your shorty.
Sounds pretty simple - what kinda cost?
JPL
I still miss my '94 Pajero!

User avatar
steepcreeker
Posts: 50
Joined: Tue Jun 19, 2007 2:49 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: 94 Royal L400

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by steepcreeker » Wed Mar 31, 2010 5:26 pm

Hi Jeff,

Can I use the stock shocks with the Lift Kit #6? Will it affect the ecs? When do you get them in? Any idea on cost?

Thanks

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by jessef » Wed Mar 31, 2010 10:55 pm

steepcreeker wrote:Hi Jeff,

Can I use the stock shocks with the Lift Kit #6? Will it affect the ecs? When do you get them in? Any idea on cost?

Thanks
you'll need 2" longer shocks as per my quote in the first post and ecs is tied to the solenoid ontop of the stock shocks. You can buy ecs shocks but they cost an arm and a leg. There is a thread about them in the L400 section.

I'm picking up the rear spacers next week and will have a cost/update then.

MatthewR
Posts: 4
Joined: Mon Jan 04, 2010 7:36 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: Delica what else!

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by MatthewR » Mon Apr 19, 2010 4:32 pm

Hey,

I just have a few question about the lift kits. What are the big differences between the 2" and 3" lifts in terms of ride and tipsiness? I am interested in putting a lift in my van however am not sure if I want to get a 2" or 3" lift. Are there pictures of delica's with these lifts in them? Do these lifts require the torsion bars to be adjusted as much as they can be?
Is there a price for either lift kit #2 and #4? I just finished my degree today so will not have money for about a month, will these lifts still be available?

Thanks,
Matt

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 1.5" L400 / 2" L400 lift kits for sale

Post by jessef » Mon Apr 19, 2010 5:04 pm

Hi Matt,

There are plenty of kits. 20 L300 and 20 L400 kits in total on this batch.

I will be assembling them and have them ready by the end of this month within 2 weeks.

I will be updating the pricing at that points once I receive the shocks as well.

The 3" L300 kit will not be available until May.

The 3" L300 lift is more for someone who would like to run larger than a 31" tires. More along the lines of a true 31" mud tire or 32" All-terrain.

Myself, I prefer the 2" lift. When installed properly with good tires, it firms up the ride and almost eliminates any side to side wobble than all vans have a tendency to do.

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Mon May 03, 2010 10:56 pm

Kits, installation and pricing updated in first post.

Now taking orders. :M

psilosin
Posts: 1045
Joined: Mon Mar 05, 2007 4:31 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: L400
Location: BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by psilosin » Wed May 05, 2010 10:51 am

Myself, I prefer the 2" lift. When installed properly with good tires, it firms up the ride and almost eliminates any side to side wobble than all vans have a tendency to do.
Semi-OT: Just wondering how a lift eliminates any side to side wobble? Due to the tbar crank stiffening up the suspension a bit? Or from the aftermarket shocks? Just wondering as my Liteace frontend squirmyness improved a lot with better tires but it could still use some improvement...if a simple tbar crank might make a noticeable difference I'll add that to the todo list.

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Wed May 05, 2010 1:03 pm

More tension on the torsion bars and good shocks will reduced wobble.

Unless the shocks have been changed recently, most JDM vehicles come from Japan with poor condition shocks. That's the reason why you can see a few quality dealers that replace all shocks on all of their vehicles coming from Japan regardless of how good the originals 'look'.

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Mon May 10, 2010 5:40 pm

This is the last batch of lift kits I will be making until late this year/early next year.

Once they are sold out, I will not be making more until then.



Available :

L300 3" full - qty : 0 sold out

L300 2" partial/full - qty : 9 left

L400 2" partial/full - qty : 8 left

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Fri May 21, 2010 7:13 pm

pictures up :M
Last edited by jessef on Thu May 26, 2011 3:24 pm, edited 1 time in total.

User avatar
jessef
Posts: 6457
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jessef » Sun Jun 06, 2010 9:01 pm

pictures up :M

User avatar
jaggedfish
Posts: 593
Joined: Fri Jan 04, 2008 8:47 am
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: 95 Crystal Lite SWB Exceed
Location: Davis Bay, BC
Location: Davis Bay, BC

Re: 2" L300 / 3" L300 / 2" L400 lift kits for sale

Post by jaggedfish » Sun Jul 04, 2010 5:48 pm

Well... I had said a while back that I wouldn't lift my Delica but, it seems, I have to eat my words now. After some ground clearance issues, I wanted to help my faithful companion get through trails without as much front step grinding and plate bashing so... I purchased a full L300 kit and have now had it professionally installed by a shop here in Calgary. In order to save time (thus money) I asked Jesse a number of questions so I could pass on as much information as possible to the guys at the shop. All went very well and the kit was installed and alignment done with only minor issues - none of which haven't been brought up before. I will try to summarize as best as I can but first want to give everyone a real before and after visual as the impact is lost once larger tires are added to the equation. Sooo... here's the before shot...
Before shot... standard kneeling problem.

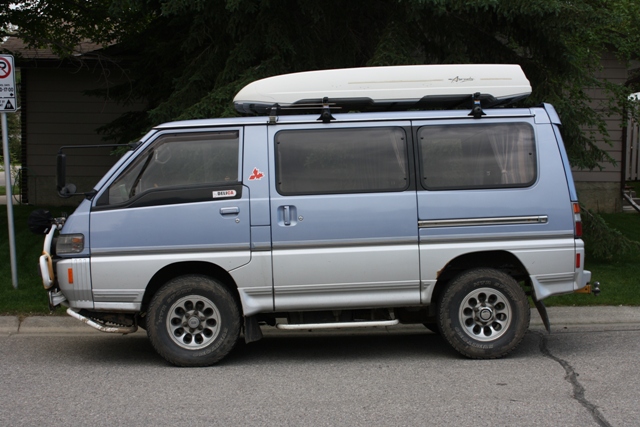

Annnd... here's the after shot...

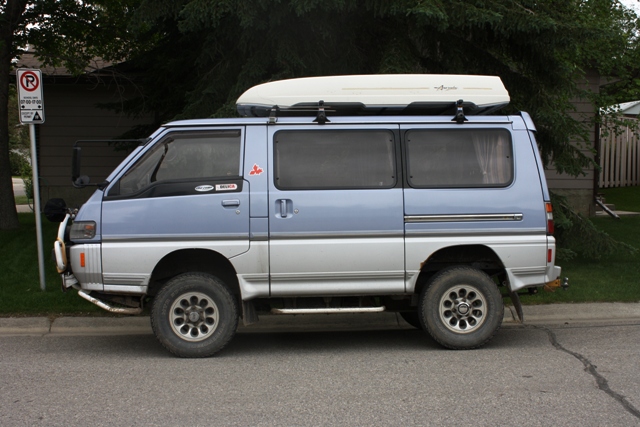

After... definitely no more kneeling!

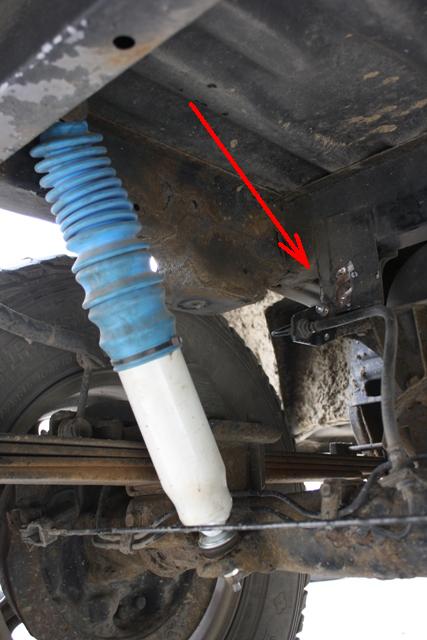

Now, to install the kit, the shackles go on the back end of the rear leaf springs. Here's a shot of the rear passenger side looking from the rear diff housing. No, that's not rust already on the bolts... it's the reflection of the yellow paint on my hitch...
Rear Shackle.JPG

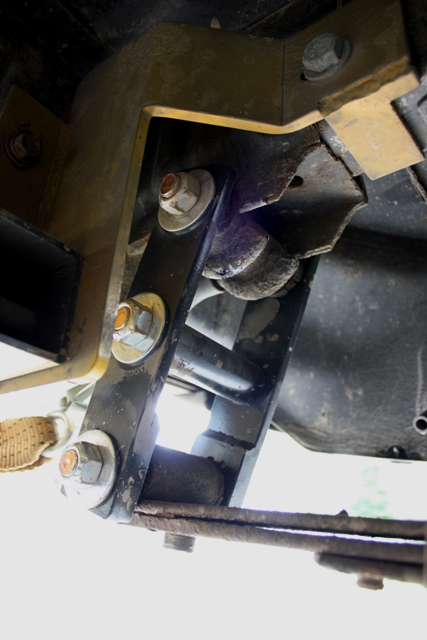

Rear Shackle installed.
Rear Shackle.JPG (122.25 KiB) Viewed 16349 times
The one minor issue is the rear brake line bracket will need to be relocated to compensate for the rear axle assembly being dropped as a result of the shackles. Here's a pic of the location of the bracket and a close-up of the bracket itself...
Brake Location.JPG
Brake bracket location.
Brake Location.JPG (48.26 KiB) Viewed 16326 times

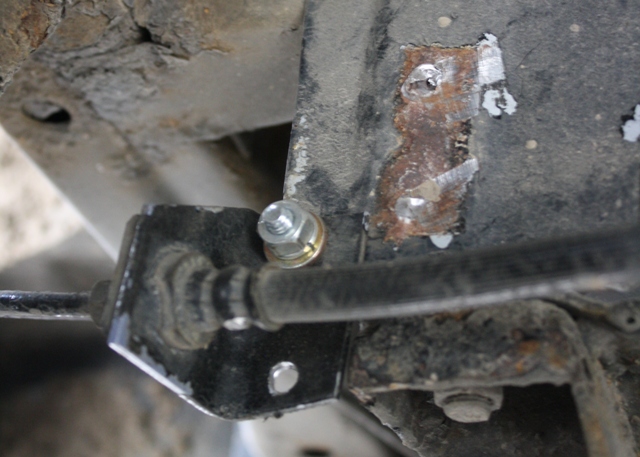

Relocated bracket and showing old location.
On to the front of the van... here's a pic of the location for the ball joint spacer. This shot is looking up at the upper control arm and upper ball joint assembly. The bevelled face of the spacer faces up - other than that there is only one way it can be installed. Just make sure the bolts are vertical and not tilted off-angle. The second pic is a close-up of the ball joint where you can see a bit of the installed spacer showing...
Front Assy.JPG

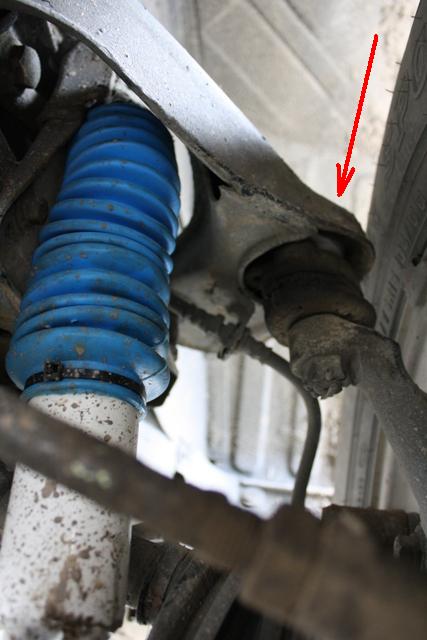

Front assembly showing upper control arm and ball joint.
Front Assy.JPG (45.08 KiB) Viewed 16306 times
Ball Joint Spacer.JPG

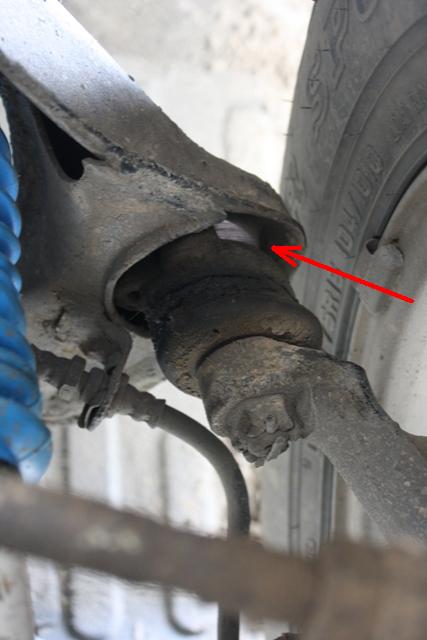

Installed ball joint spacer location.
Ball Joint Spacer.JPG (40.19 KiB) Viewed 16272 times
The torsion bars will require re-indexing and adjustment to provide the front lift. Mine required one extra spline on one side to compensate for extra sag. Both adjusters are now at the same angle which theoretically should provide the same amount of tension (springyness) to the front suspension. All said it was 6 hours of shop time to do the job.

I have to say I am thrilled with the end result in both appearance and performance. The van sits much higher now - seems more than 2 inches - and drives really well on and off road. The front doesn't seem to dive as much coming down steep slopes and I can confidently negotiate cross ditches and many obstacles I couldn't before, especially when it involves the approach angle. The unfamilar part right now is side angles... will be more confident with wider tires altho I still pushed her to 35 degrees :shock: .

Kudos to Jesse for putting these together!
Cheers!
Ian
